Model |
HESS-OF-M-5.5K |
| Capacity | 5.5KVA/5.5KW |
| Parallel Capability | YES, 12 UNITS |
| Input | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For Personal Computer); 90-280VAC(For Home Appliances) |
| Frequency | 50/60 Hz(Auto Sensing) |
| Output | |
| Nominal Voltage | 220/230VAC±5% |
| Surge Power | 11000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms(For Personal Computer); 20ms(For Home Appliances) |
| Peak Efficiency(PV to INV) | 96% |
| Peak Efficiency(Battery to INV) | 93% |
| Overload Protection | 5s@≥150% load; 10s@110%~150% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1(Inductive or Capacitive) |
| Battery | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Over Charge Protection | 63VDC |
| Charging Method | CC / CV |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Max.PV Array Power | 5500W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 120VDC~450VDC |
| Max.Solar Input Current | 18A |
| Max.Solar Charge Current | 100A |
| Max.AC Charge Current | 60A |
| Max.Charge Current | 100A |
| Physical | |
| Dimensions, D*W*H | 448*295*121mm |
| Package Dimensions, D*W*H | 560*375*190mm |
| Net Weight | 10Kg |
| Communication Interface | USB / RS232 / Dry-contact |
| Environment | |
| Operating Temperature Range | (-10°C ~ 50°C) |
| Storage Temperature | (-15°C ~ 50°C) |
| Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
Hanchu 5.5kw Off Grid Inverter
R8500.00
excluding VATA cutting-edge solution that redefines performance and adaptability. With a pure sine wave output and a power factor of 1.0, it ensures a stable and clean power supply. The inverter boasts a high PV input capability, handling up to 500VDC with a built-in 100A MPPT for efficient energy conversion. Notably, it can operate seamlessly without a battery, offering continuous power. Equipped with a detachable dust cover, it ensures durability in harsh environments. The Power Wave is compatible with LiFePO4 batteries and supports multiple output priorities, allowing customizable energy distribution. With scalable parallel operation of up to 12 units and an EQ function to optimize battery performance, the Power Wave represents the future of versatile and high-performance inverter technology
Related products
-
-
-

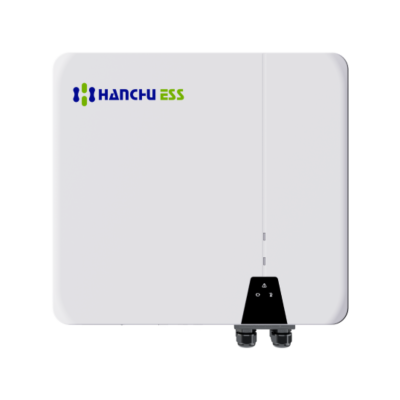

InvertersHanchu Three Phase Hybrid Inverter
